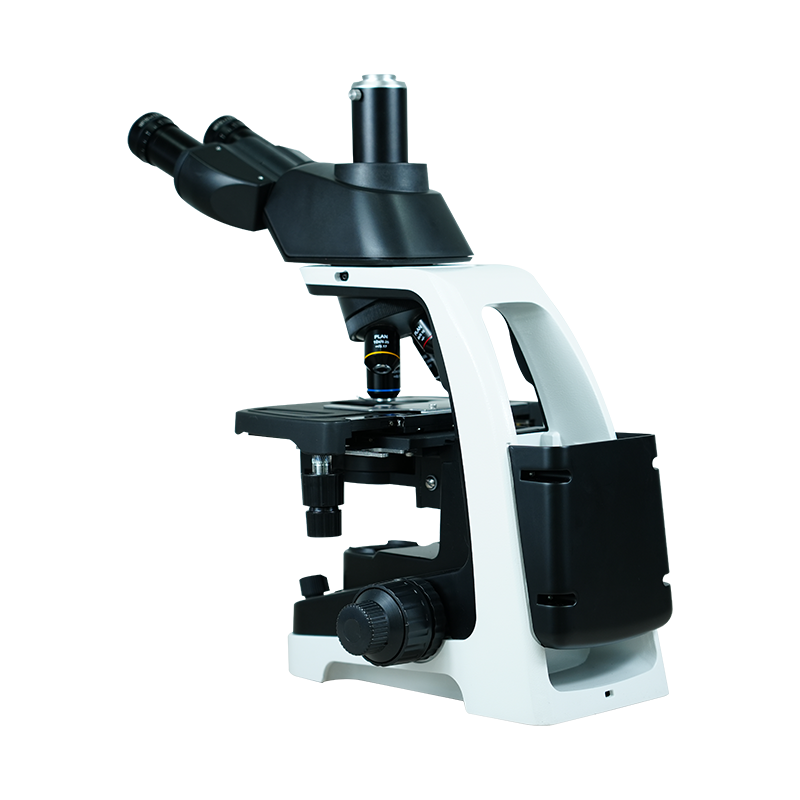

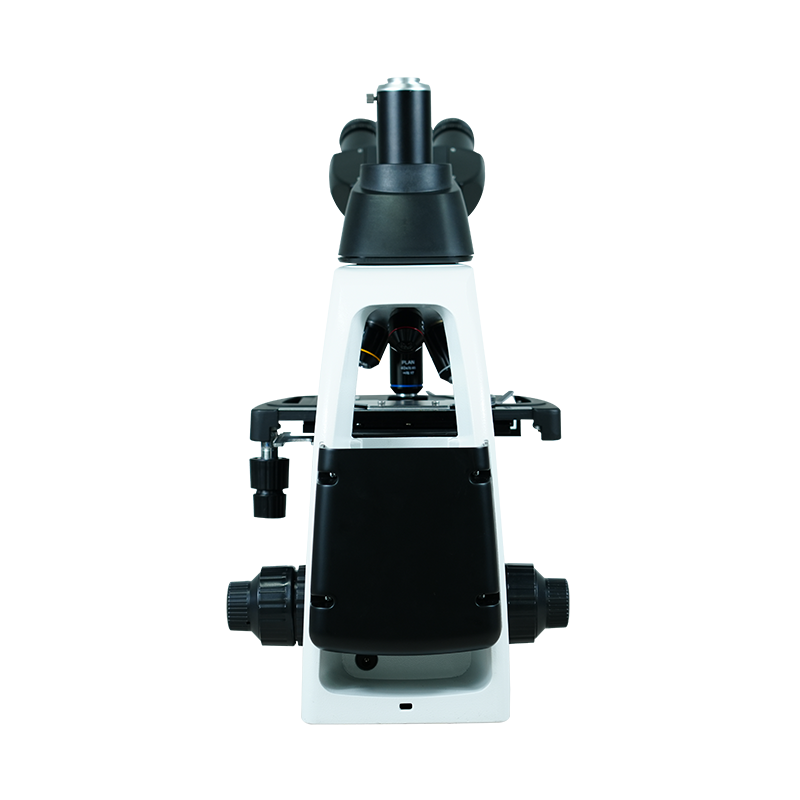

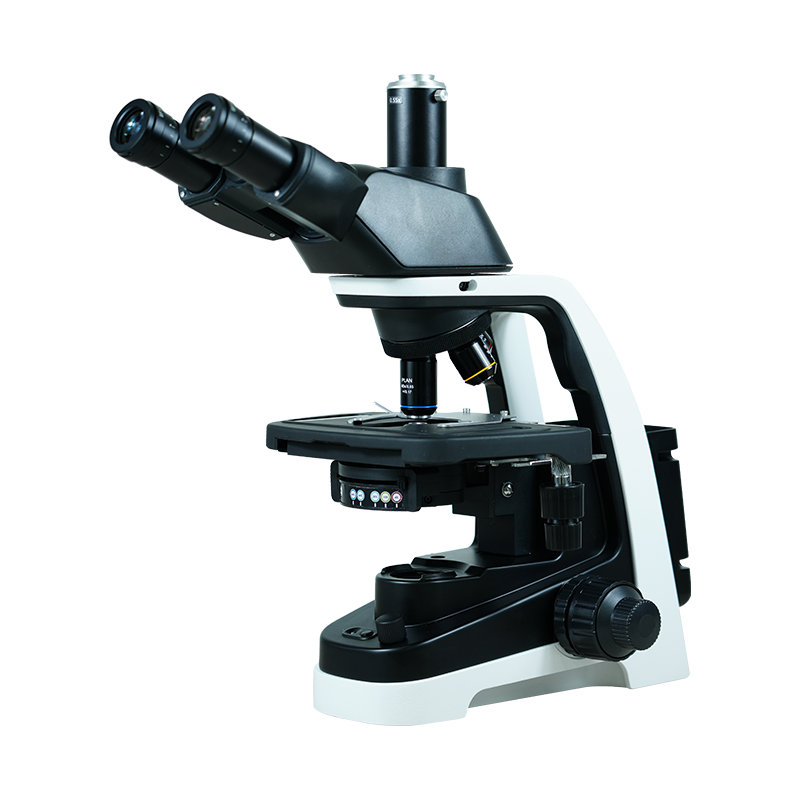

GD-800SM(Trinocular) OEM/ODM

Home / Products / Microscope / Trinocular Microscope / GD-800SM(Trinocular)
  • Product Details
  • About Fangyuan
  • Contact Us
Model GD-800SM(Trinocular)
Optical System Infinity Optical System
Eyepiece WF10X/23mm High Eyepiont Eyepiece, Diopter Adjustment ±5, TubeΦ30mm
objective 45mm DIN Achromatic Objective:4X,10X,40X(S),100X(S,Oil)
viewing Head Articulated Free Binocular Head/trinocular head, 30°inclined, Interpupillary Distance 50-75mm
Nosepiece Backward Quintuple or Quadruple Objective Nosepiece
Stage 220X148mm X-axis Low Hand Position Double Mechanical Stage(steel wire transmission),76X50mm,Presion 0.1mm,Damped Double Slide Clamp
Condenser Abbe Condenser Set
Focusing System Coaxial Coarse and Fine Focus Knobs, Precision 0.002mm
Illumination 3W LED Lamp with Kohler Illumination System
Optional  1.Insert Phase Contrast Apparatus

2.Dry Darkfield Condenser, Oil-darkfiled Condenser

3.Polarizing Device

4.Plan Objective Set、Infinity Plan Achromatic Objective Set

5.Swing Abbe Condenser

6.5W LED

Company Introduction

Ningbo Beilun Fangyuan Photoelectric Instrument Co., Ltd.

Established in 2006, Ningbo Beilun Fangyuan Photoelectric Instrument Co., Ltd. is located in the Beilun district, of Ningbo, Zhejiang Province, China. As China GD-800SM(Trinocular) Manufacturers and GD-800SM(Trinocular) Factory With the rapid development of technology, we become a professional manufacturer specializing in a wide spectrum of photoelectric instruments, which ranges from stereomicroscopes, biological microscopes, metallographic microscopes, polarizing microscopes, fluorescence microscopes, optical lenses to telescopes, flaw detectors, and projectors.
