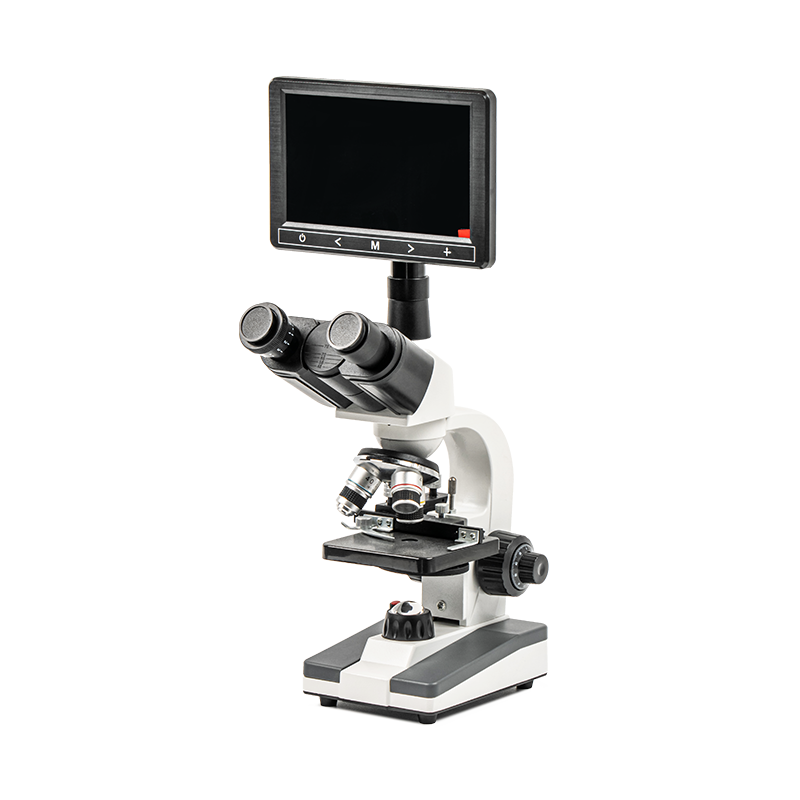

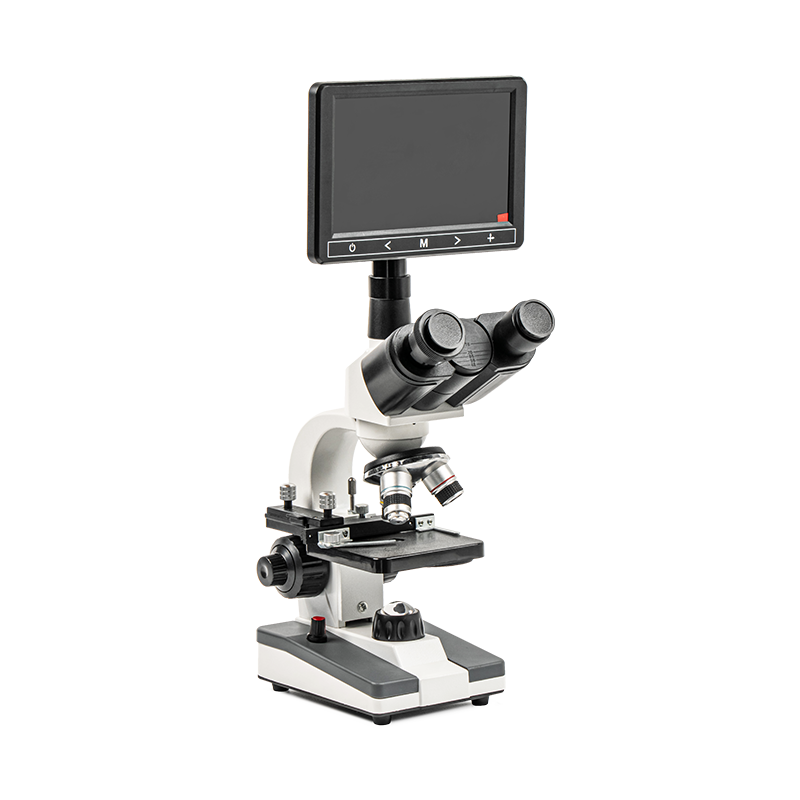

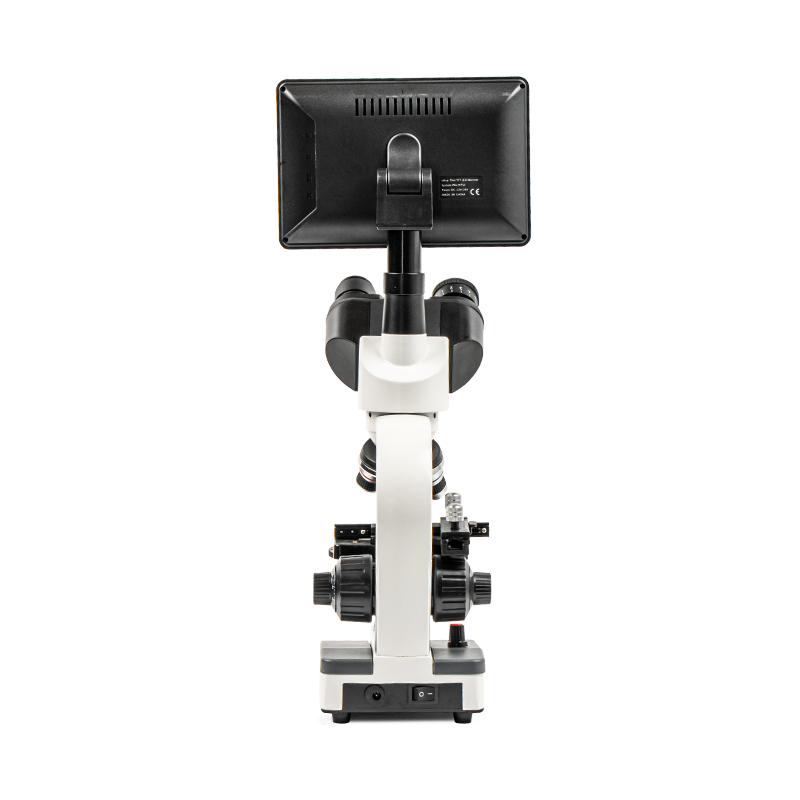

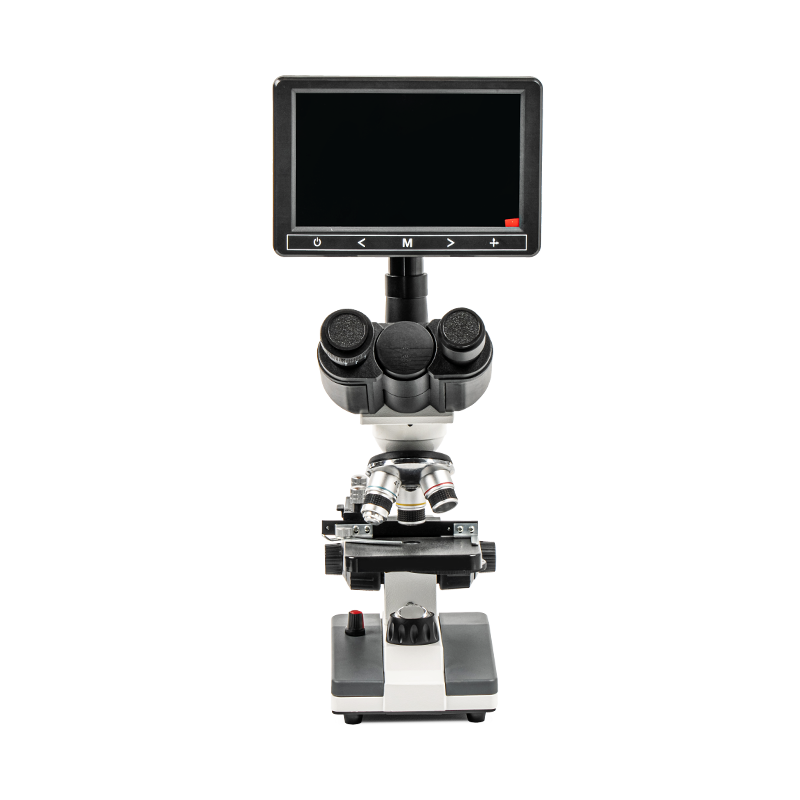

XSP-116SM Digital Microscope with Trinocular Head and Screen

XSP-116SM Digital Microscope with Trinocular Head and Screen

The XSP-116SM digital microscope supports binocular observation and digital observation, allowing users to enjoy the convenience of traditional observation methods and digital images at the same time. The condenser adopts N.A.0.65 Condenser, which can adjust the incident angle by rotating the aperture hole to provide uniform and clear illumination. The focus adjustment system includes Coarse and Fine Adjustment, which enables accurate adjustment of the focus point. This microscope is suitable for a variety of applications, including laboratory research, education and training, and industrial inspection.
Contact Us
PREV：XSP-136SM 7inch Digital Screen MicroscopeNEXT：XSP-100SM digital inspection microscope
  • Product Details
  • About Fangyuan
  • Contact Us
Specification
Achromatic objective 4X、10X、40X ( spring )
Eyepiece Wide field eyepieces WF10X、(WF16X  optional)
Viewing head Trinocular head, 7 inch screen
Stage Plain stage with moving scale,  Stage size 90mmX90mm
Condenser N.A.0.65 Condenser with disc diaphragm N.A.0.65
Focusing Coarse  and fine Adjustment
Power AC Input 220V or 110V,DC ouput 6V
Illumination LED lamp （led lamp with chargeble option)
