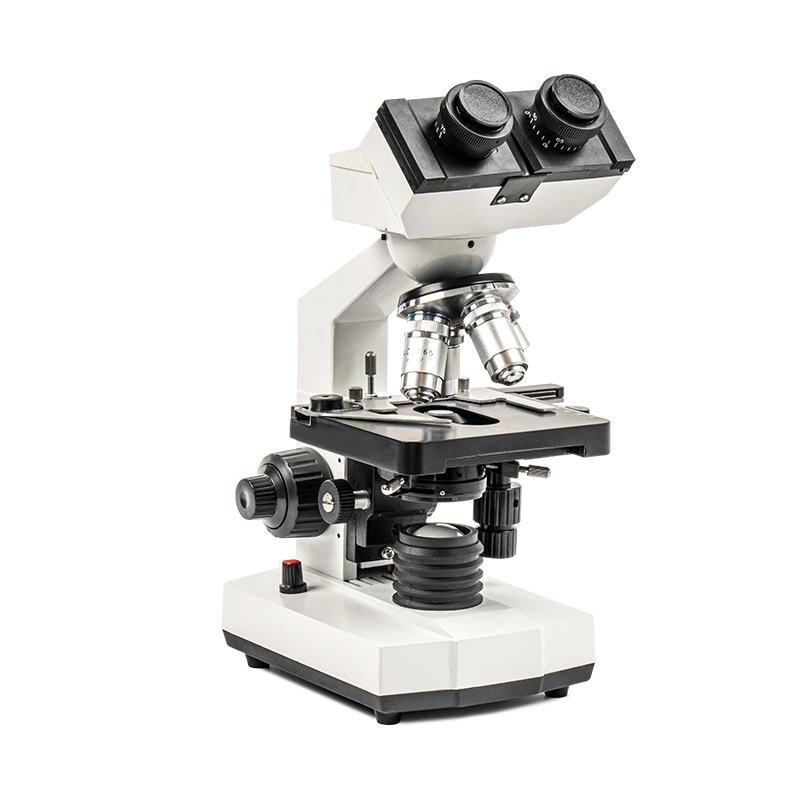

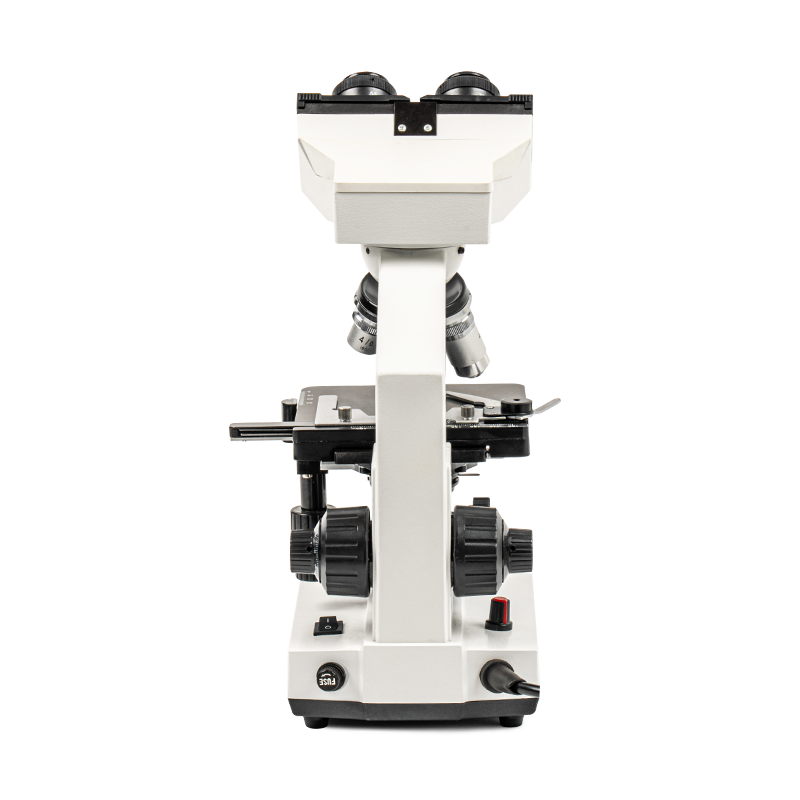

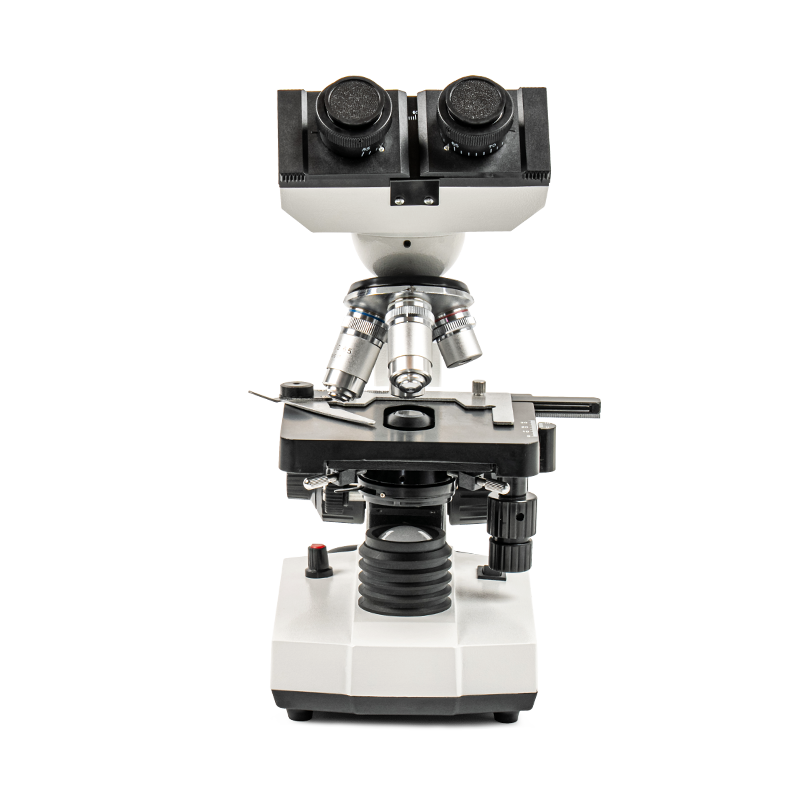

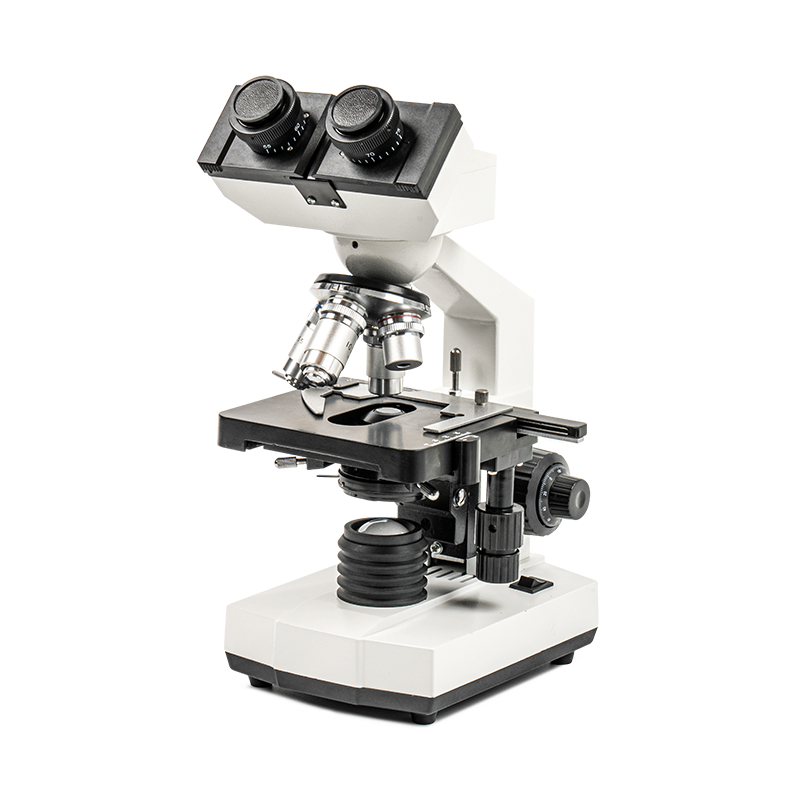

XSP-104E Sliding Binocular Head Microscope Inclined at 45°

XSP-104E Sliding Binocular Head Microscope Inclined at 45°

XSP-104E Sliding Binocular Head Microscope Inclined at 45° is a microscope specially designed for biological observation and experiments. Its main features include a sliding 45-degree tilted binocular viewing head, which provides a more flexible viewing angle, helps reduce the user's neck fatigue, and provides a more comfortable viewing experience. Its versatile design makes it suitable for a variety of biological applications.
Contact Us
PREV：XSP-104V 360° rotatable Dual viewing head microscopeNEXT：XSP-104B 4 Objective Lens Binocular Biological Microscope for Student Laboratory
  • Product Details
  • About Fangyuan
  • Contact Us
Specification
Achromatic Objectives 4X、10X、40X（S）、100X（S、Oil）
Eyepiece Wide Field Eyepiece ：WF10X、（WF16X optional）
Viewing head Sliding Binocular Head Inclined at 45°
Stage Double Layer Mechanical Stage Size 125X115mm
Focusing Coaxial Coarse and Fine Adjustment,Focusing Range 30mm,Focusing Interval 0.002mm
Condenser Abbe NA=1.25 with lris Diaphragm&Filter
IIIumination Halogen Lamp 220V/6V20W or 110V/6v20W  (led lamp optional)
